The right guitar plate joining jig can transform neck joints, binding cuts, and routing tasks into repeatable, high-precision steps. This guide highlights five top jigs that excel in alignment, controlled pressure, and accurate routing for guitars and similar instruments. Each option brings specialized features to help luthiers, repair shops, and serious hobbyists achieve professional results with less guesswork.
| Product | Why It Stands Out |
|---|---|
| StewMac Neck Removal Jig | Controlled, gradual neck removal for clean dovetail joints |
| EDGETOOL Neck Alignment Jig | Self-centering, precise alignment with durable aluminum construction |
| StewMac TrueChannel Binding Router Jig | Floating cutter capability for squared binding ledges |
| AUTOVIC Guitar Tuner Drill Jig | Quick-align design for flawless pin-hole alignment |
| Waverly Tuner Mounting Screw Locator Drill Jig | Square drill bit positioning for various tuner brands |
These products span neck work, binding, and tuner installations, offering options for both beginners and shops that demand dependable, repeatable results. Below are detailed sections for each selection, followed by a practical buying guide to help you compare features, durability, and ease of use.

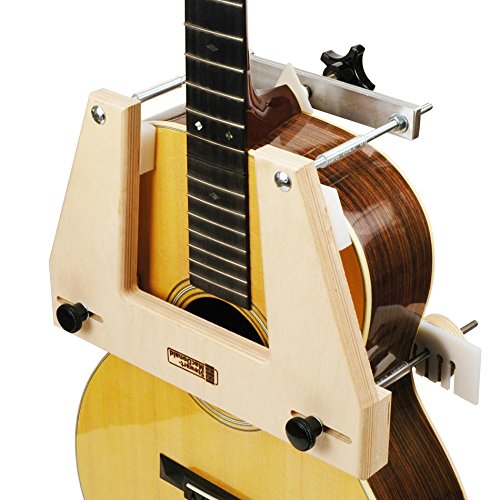

StewMac Neck Removal Jig
The StewMac Neck Removal Jig is designed to push the guitar neck out gradually and controllably, enabling fast, clean dovetail neck joint disassembly. It is particularly valuable for shops that perform regular neck resets. The mechanism applies gradual, properly aligned, and controlled pressure to the neck heel, reducing the risk of shock or damage during removal. This tool supports consistent results across multiple builds, making neck removal safer and more predictable.
EDGETOOL Neck Alignment Jig
EDGETOOL’s Neck Alignment Jig emphasizes precision with a self-centering design that ensures the neck sits perfectly along the instrument’s centerline. Built from high-quality aluminum, the tool promises durability and repeatable accuracy. It’s designed for quick setup and reliable results, reducing the time spent checking alignment during builds, repairs, and neck adjustments.
Waverly Guitar Tuner Mounting Screw Locator Drill Jig
This compact jig specializes in tuner installations, working with a hand drill to keep drill bits square at the correct locations for Waverly mounting screws. Its 1″ hole spacing matches Waverly guitar and ukulele tuners as well as 18:1 Grover Sta-Tite machines, making it a practical choice for repair shops and luthiers who require precise, repeatable tuner mounting. It’s an easy-to-use solution for ensuring accurate screw placement and alignment.
AUTOVIC Guitar Tuner Drill Jig
AUTOVIC’s Tuner Drill Jig is designed for pin-mount, 6-in-line machine heads and is compatible with Fender, Squier, Schaller, Sperzel, Hipshot, and Graph-Tech pin-mount tuners. It features a high-precision machined aluminum body and steel drill guides for flawless hole alignment. The quick-align design with visible guide holes enables fast, accurate drilling without requiring power drills, reducing the risk of misalignment during the process.
StewMac TrueChannel Binding Router Jig
The StewMac TrueChannel Binding Router Jig enables precise binding work by turning a laminate router into a floating cutter. It is designed to cut perfectly squared binding ledges on various instruments, including archtops. The jig carriage fits the Bosch Colt Router and can be adapted for other common laminate trimmers, offering flexibility in routing tasks and enabling clean, professional binding work with reduced risk of overcuts or misalignment.
Buying Guide
- Purpose and scope: Choose jigs tailored to the most frequent tasks in your shop—neck work, binding routing, or tuner installations. Some tools combine multiple capabilities, saving space and cost.
- Material and durability: Aluminum bodies offer light weight with good rigidity, while steel components provide extra longevity in high-use environments. Consider the balance you need between weight and stiffness.
- Alignment precision: Self-centering and reference-guide features reduce human error. Look for jigs with clear alignment cues and repeatable placement for consistent results.
- Ease of setup: Quick-adjust mechanisms, visible guide holes, and clamp systems can dramatically cut setup time. Tools with magnetic templates or modular components are especially user-friendly.
- Compatibility: Verify that the jig supports your specific hardware (tuner brands, binding types, or neck joint styles). Some jigs are designed for common guitar models, while others are more universal.
- Power and tooling: Some jigs rely on manual operation, while others assume power tools. Consider your workshop setup and whether you prefer hand-driven or powered drilling and routing.
- Maintenance: Look for robust construction and materials that resist wear from frequent drilling, routing, and clamping. User-friendly cleaning and easy part replacements help longevity.
- Budget and workflow impact: Higher initial cost may be justified by time saved and improved precision. Weigh the long-term workflow benefits against upfront investment.
In practice, selecting a guitar plate joining jig involves balancing precision needs with workflow realities. Neck alignment tools improve setup consistency, while binding and router jigs deliver professional-looking joints and clean edges. Tuner drill jigs reduce misalignment risks, saving time on frequently serviced hardware. For shops handling a mix of repairs and builds, a combination of a few focused jigs often yields the best overall performance. Always assess your typical instrument types, preferred routings, and the brands you most commonly service when deciding which tool(s) to add to your workbench.
