When fine-tuning engine clearance, a 7mm feeler gauge is a compact yet essential tool for ensuring accurate valve lash and brake-related adjustments on Cummins ISX engines and similar setups. This article highlights five top 7mm Jake Brake feeler gauge tools, detailing compatibility, construction, and practical usage. Each option emphasizes precision, ease of insertion, and durability for demanding conditions. Use these insights to choose a reliable gauge kit that supports consistent engine performance and longevity.
| Product | Brand | Key Benefit |
|---|---|---|
| Camoo 3163530 Engine Brake Adjustment Tools 7MM | Camoo | Precise 7.0mm, angled insertion for slave pistons |
| Engine Brake Adjustment Tool Compatible with Cummins ISX | Bestong | Durable steel, black PVC handle, corrosion resistant |
| kauplus 3PCS Engine Brake Adjustment Tool Kit | kauplus | Set includes 4.1mm, 4.6mm, and 7.0mm for versatility |
| TEXVOKIE 3163530 Engine Jake Brake Tool | TEXVOKIE | 7mm gauge as a reliable 3163530 alternative |
| Oni Tools Jake Brake Feeler Gauge Shim 7MM | Oni Tools | Direct OEM replacement with sides-insertion design |
Camoo 7MM Jake Brake Gauge — 3163530 Compatibility
The Camoo 3163530 gauge is designed for Cummins ISX engines, aligning with OEM #3163530 specifications. The 7.0mm section is ground to ±0.0005 inch for tight tolerances. The angled design facilitates insertion between the slave piston contact surface and the exhaust valve adjusting screw, reducing the risk of binding compared to a straight gauge.
Use: Insert from the side to clear the slave bridge and verify valve lash. Precision helps prevent improper clearance that could impact engine performance or risk damage. This gauge emphasizes accuracy in a compact form factor, ideal for maintenance bays and field service where space and ease of use matter.
Bestong Engine Brake Adjustment Tool — 7mm
Bestong offers a 7mm feeler gauge tailored for Cummins ISX engines, marketed as a practical alternative to the OEM gauge. It features advanced heavy-duty steel construction with a black non-slip PVC coated handle. The design emphasizes durability and resistance to corrosion, supporting long-term reliability in demanding environments. The tool supports quick and accurate valve clearance checks, contributing to reliable engine performance and reducing the risk of unplanned failures.
Application notes: Ensure the engine is turned off before adjusting lash, and perform adjustments on both slave piston screws in each cylinder for balanced clearance. The 7mm gauge is chosen to suit common Jake Brake setups, enabling fast insertions and dependable readings in a workshop or shop truck setting.
kauplus 3Pcs Tool Kit — 4.1mm, 4.6mm, 7.0mm
This three-piece kit provides 4.1mm, 4.6mm, and 7.0mm gauges for valve clearance checks. The angled design assists in positioning the gauge between slave pistons and the exhaust valve adjusting screw. It emphasizes ease of insertion, particularly on vehicles where straight gauges may require bending or multiple manipulations. The kit is designed for turning off the engine before lash settings, and it notes that lash adjustments should be performed on both slave piston screws for each cylinder.
The inclusion of multiple sizes expands versatility beyond a single vehicle configuration, supporting a broader range of ISX engine applications and similar architectures. The gauges are crafted to facilitate accurate lubrication gaps and valve settings with minimal operator effort.

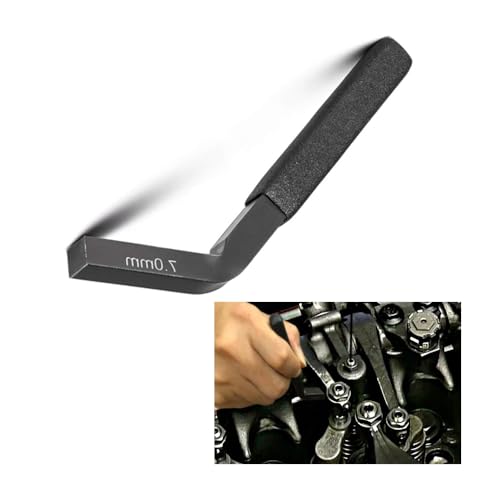

TEXVOKIE 7MM Jake Brake Tool — 3163530 Alternative
TEXVOKIE presents a 7mm gauge that serves as a precise alternative to OEM 3163530 parts for Cummins ISX engines. The tool is constructed from high-quality steel and finished with an anodized black coating to resist rust and corrosion. This durable build supports repeated use in workshop settings and field service calls. The tool’s 7.0mm gauge maintains accuracy for reliable lash adjustments, aligning with the needs of technicians who require dependable performance without OEM constraints.
Compatibility notes: The gauge is promoted for compatibility with Cummins ISX engines, offering a straightforward path to replace or supplement OEM parts when needed. The design prioritizes accuracy and longevity, enabling technicians to complete adjustments with confidence and quickly move to the next maintenance task.
Oni Tools 7MM Jake Brake Feeler Gauge Shim
Oni Tools offers a direct OEM replacement gauge for Cummins ISX engines. The 7mm feeler gauge is designed to be inserted from the sides to clear the slave bridge, with precision ground tolerances of ±0.0005 inch. This tool functions as a shim in Jake Brake adjustments, supporting precise lash settings where space is tight. The side-entry design helps technicians avoid alignment issues when working in restricted engine compartments, contributing to consistent readings and proper engine clearance.
Yoursme 7MM Alternative — Cummins ISX Valve Adjustment
Yoursme positions its gauge as an ISX valve adjustment alternative with a 7mm designation. This gauge emphasizes precision with a ±0.0005 inch ground area and instructions to insert the gauge from the sides to avoid interference with the slave bridge. The kit is oriented toward technicians seeking an economical option that still delivers reliable accuracy for both brake lash and valve clearance checks. As with other options, consistent results depend on proper procedure and dual-screw adjustments per cylinder.
Buying Guide: Key Considerations And Comparisons
- Compatibility: Confirm the gauge is designed for Cummins ISX or your specific engine family. OEM-aligned gauges (e.g., 3163530) tend to minimize fitment uncertainties.
- Gauge design: Angled versus straight gauges affect insertion ease. Angled gauges typically ease access between slave pistons and the exhaust valve adjusting screw.
- Material and finish: Look for high-grade steel with corrosion-resistant coatings to withstand frequent engine maintenance in various environments.
- Precision tolerance: A tolerance around ±0.0005 inch is common for critical valve lash measurements. Higher precision supports consistent engine performance.
- Multi-size kits: Sets including multiple gauges (e.g., 4.1mm, 4.6mm, and 7.0mm) provide flexibility for different lash requirements across cylinders and models.
- Insertion technique: Side insertion helps clear the slave bridge and reduces the risk of binding during measurements, especially in tight engine bays.
- Durability vs. cost: Durable, corrosion-resistant tools may cost more upfront but reduce replacement frequency and improve reliability over time.
- Usage best practices: Always turn off the engine before adjustments, verify lash on both slave pistons per cylinder, and follow manufacturer or OEM guidelines for torque and clearance values.
- Replacement parts: Consider availability of OEM-specified replacements when selecting a gauge, to ensure compatibility across service intervals.
- Warranty and support: Check product warranties and seller support, particularly for tools used in professional settings where uptime matters.
